What Is a Leaky Feeder in Underground Mining
Reliable communication isn’t a luxury when you’re half a mile underground—it’s a lifeline. Standard radio signals hit a rock wall the moment they turn a corner in a mine shaft. Becker Wholesale Mine Supply specializes in bridging that gap with high-durability communication infrastructure. Understanding what is a leaky feeder, is the first step toward a safer, more efficient haulage route and better crew coordination.
Key Takeaways
- Continuous Coverage: Unlike localized Wi-Fi, a leaky feeder acts as one massive, tunnel-long antenna.
- Bi-Directional Data: It supports crystal-clear voice, real-time equipment telemetry, and personnel tracking.
- Rugged Infrastructure: Built to survive the damp, high-pressure environments of USA mining operations.
- Safety Standard: It is the primary backbone for emergency response and MSHA-compliant communication strategies.
What Is A Leaky Feeder System In Modern Mining?
A leaky feeder is a specialized communication network using “radiating” coaxial cable to emit and receive radio signals throughout underground tunnels. Think of it as a garden hose with tiny punctures that let water (signal) leak out consistently along the entire length. This ensures miners never hit a “dead zone” while moving through deep galleries where traditional line-of-sight wireless fails.
Operational Reliability
- Signal Persistence: The cable maintains a constant “cloud” of RF signal, even around 90-degree pillars and deep stopes.
- Frequency Agility: These systems operate on VHF or UHF bands, cutting through the heavy electromagnetic interference typical of high-voltage mining equipment.
Technical Execution
- Amplification Stages: Because signal strength drops over distance, we integrate bi-directional amplifiers (BDAs) to boost the “leak” every few hundred meters.
- Head-End Interface: This is the “brain” on the surface that links your underground crew to the dispatch office and emergency services.
How Does A Leaky Feeder System Actually Function?
To grasp what is a leaky feeder, you have to look at the physics of the cable itself. Standard coax is designed to trap signal inside; leaky coax has precision-engineered gaps in the copper shielding. This allows the radio waves to escape and interact with handheld units. It’s a closed-loop system that treats the entire mine layout as a single, connected antenna.
The Strategic Framework for Underground Communication
- The Radiating Backbone: We run the “leaky” cable along the roof or ribs of the main haulage ways and secondary drifts.
- Strategic Amplification: Inline boosters are installed to compensate for “longitudinal loss,” ensuring the signal at the face is as strong as the signal at the portal.
- The Surface Link: A base station bridges the underground RF signal to the surface, allowing for seamless top-to-bottom coordination.
- End-User Integration: Handheld radios and vehicle-mounted units “talk” to the cable, which then carries that voice or data back to the head-end.
GET IN TOUCH
In a hurry? Call us at +1-724-515-4993
Why Do Underground Mines Choose Leaky Feeders Over Wi-Fi?
The “Trade” reality is that Wi-Fi access points are fragile and require line-of-sight. In the grit and dust of a working mine, a cable-based system is simply more robust. When asking what is a leaky feeder’s biggest advantage, it’s the lack of complexity for the end user. If you are near the cable, you have a signal. Period.
At-a-Glance: Traditional Radio vs. Leaky Feeder Systems
| Feature | Standard Radio / Wi-Fi | Leaky Feeder System |
| Obstacle Penetration | Poor (Blocked by rock/ore) | Excellent (Follows the cable) |
| Maintenance | High (Many active nodes) | Low (Passive cable & few BDAs) |
| Scalability | Expensive (Requires more APs) | Simple (Splice and extend cable) |
| Data Types | High-speed but short-range | Voice, Data, and Tracking |

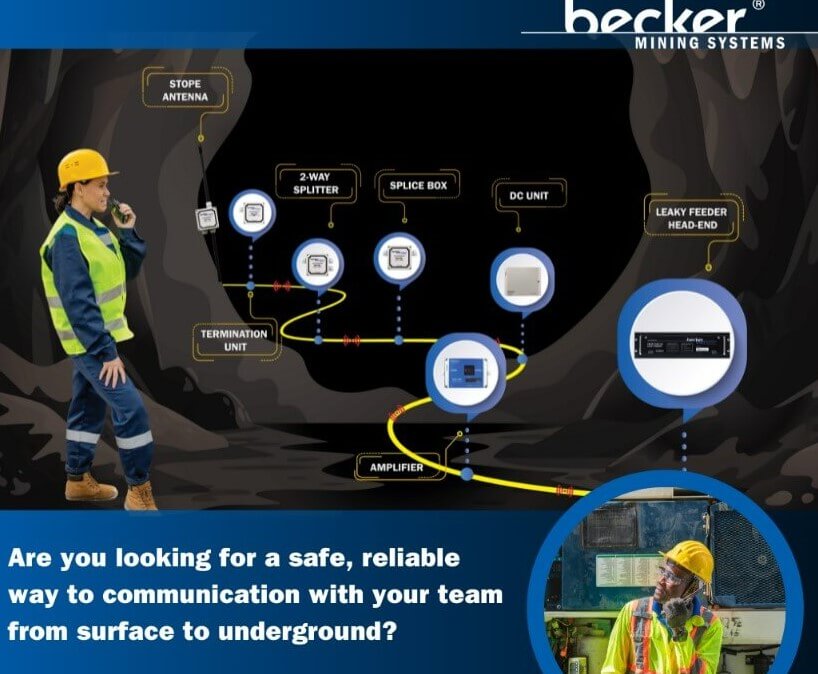

What Are The Primary Components Of A Becker System?
Grounding your knowledge in specific hardware is vital for safety managers. You aren’t just buying wire; you’re buying a calculated RF environment. Becker Wholesale Mine Supply ensures every component is MSHA-rated and built for the specific atmospheric challenges of your district.
- Radiating Coax: The specialized “leaky” cable that serves as the antenna.
- Bi-Directional Amplifiers (BDAs): Heavy-duty signal boosters that maintain gain over miles of tunnel.
- Power Couplers: Units that inject DC power into the cable to run the amplifiers without extra wiring.
- Termination Loads: Hardware at the end of the line to prevent signal “bounce” or interference.
Expert Perspective: The “Grit” Factor
Pro Tip: Don’t let the “leaky” name fool you into thinking it’s fragile. The biggest mistake operators make is hanging cable too close to the rib where it can be pinched by shifting ground or snagged by a roof bolter. We recommend a 12-inch standoff. A small air gap between the cable and the rock significantly improves the “leak” pattern and prevents signal absorption into the ore body.
GET IN TOUCH
In a hurry? Call us at +1-724-515-4993
Ready To Upgrade Your Underground Communication?
When you’re deep in the hole, “maybe” isn’t an answer that keeps people safe. Becker Wholesale Mine Supply provides the technical grit and high-performance hardware needed to answer what is a leaky feeder for your specific site. Whether you are expanding an existing drift or building a greenfield site, we deliver the backbone that keeps your crew connected.
Don’t leave your communication to chance in the deep. From the head-end to the furthest face, we ensure your signal stays strong, and your data stays moving. Get a Quote on a leaky feeder system Today
Frequently Asked Questions
What is a leaky feeder in underground mining?
It is a communication network that uses a specialized coaxial cable to act as a continuous antenna, providing radio coverage throughout a mine where traditional signals are blocked by rock.
How far can a leaky feeder signal travel?
With proper bi-directional amplifiers installed at calculated intervals, the system can extend for many miles, reaching the deepest sections of the mine without signal degradation.
Can leaky feeders track miners?
Yes. Modern systems integrate RFID and tagging technology, allowing dispatch to see the real-time location of personnel and equipment along the cable route.
What is the maintenance like for these systems?
Maintenance usually involves visual inspections of the cable for physical damage from equipment and testing the amplifiers to ensure signal gain remains within the required safety parameters.
Is a leaky feeder better than 5G underground?
For voice and basic telemetry, the leaky feeder is often superior because it is more “mine-hardened.” 5G and Wi-Fi are great for high-speed video but are far more susceptible to damage and signal blockage.
